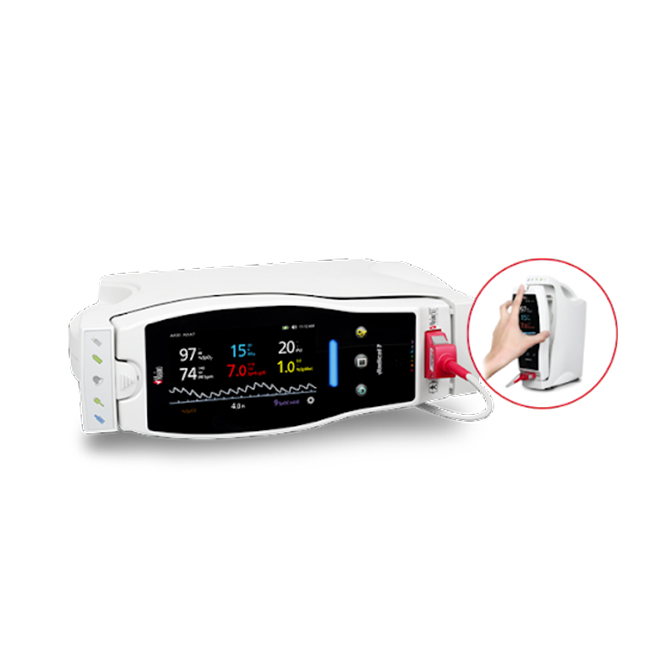

Radical-7® with Docking Station
SKU: 9500, 9021, 9023
Can be used as a standard pulse oximeter or with CO-Oximetry (Masimo rainbow® technology).
Available on purchase with the following parameters (or upgraded in the filed):
SpHb (total hemoglobin), SpMet (methemoglobin), SpOC (oxygen content), SpCO (carboxyhemoglobin), PVi (Pleth Variability Index), RRp (Respiration Rate from Pleth), RRa (Acoustic Respiration), ORi (Oxygen Reserve Index), Eve – Newborn CCHD (Critical Congenital Heart Disease) Screening Application
Features:
Masimo Rainbow & SET technology
Upgradable
Parameters: SpO2, PR, Pi, PVi, RRa

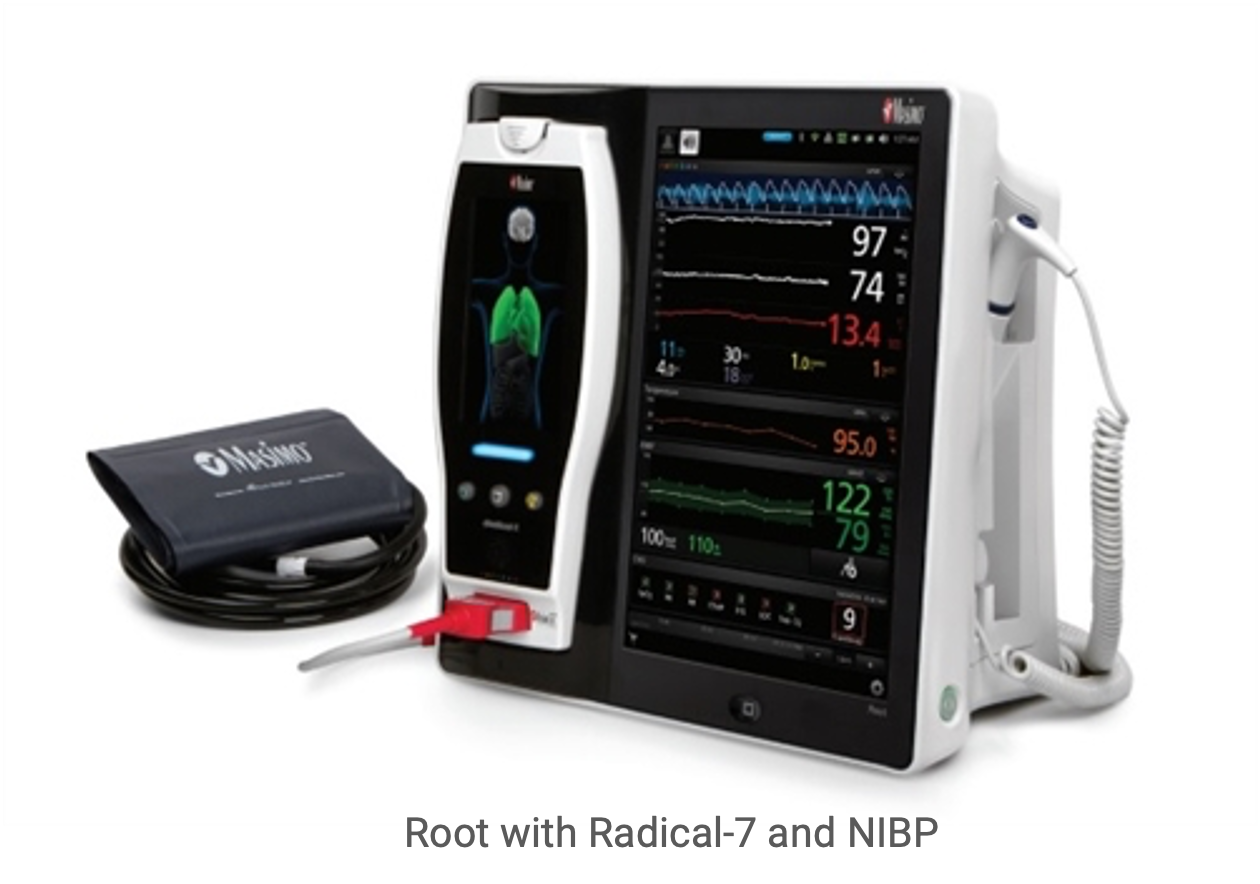

Can be configured with: SpHb, SpOC, SpMet, SpCO, PVi, , Eve, ORi (requires Root Docking Station)
Desat Index 3D alarm and PI Delta 3D alarm.
Compatible with
Cables: RD rainbow SET MD20 (RD or LNCS)
Sensors:
RD and LNCS standard sensors
Reusable RD rainbow DCI 8λ SpHb (SpO2, SpHb, SpMet)
Reusable RD rainbow DCI 8λ SpCO (SpO2, SpCO)
Single patient use RD rainbow SET-2 (Neo, Inf, Pdt)
Radical-7 Options
Code | Radical-7 Options |
9500 | Radical 7 Handheld Touch Screen comes with Masimo SpO2, PR, PI and patient cable. |
|---|---|
9021 | Radical® Docking Station, RDS™-1 |
9023 | Radical® Docking Station, RDS™-1 |
Accessories
Code | Accessories |
|---|---|
24206 | Roll stand for Radical 7 |
30581 | L Bracket (required with 30580 & 13927 for Horizontal RAD-87/8 radical 7) |
30580 | L Bracket (required with 30580 & 13927 for Horizontal RAD-87/8 radical 7) |
2868 | Mounting Bracket for Rad8/87 & Radical 7 Horizontal View |
2882 | Vertical Pole Mount for Radical 7, Includes part numbers PN30580 Monitor Base Plate and 13927 Post Rail Mount |
13927 | Vertical Pole Mount for Radical 7, Includes part numbers PN30580 Monitor Base Plate and 13927 Post Rail Mount |
1317 | Radical Pole Clamp |
